High Spec Drop Table Machine with Servo Motor

Perfect model for a variety of order sizes. Compact, Fast & Reliable.

BEKY-CⅡ series

Features

Touch screen (10.4 inch, Resolution 800×600)

Ability to register shortcuts into multiple groups

Customizeable Display

Easy Icon based operation

Lan Connector Standard, 1×COM Port & 2×USB Ports, 1×Remote Controller Connector

70 million stitch capacity, 100 memory locations

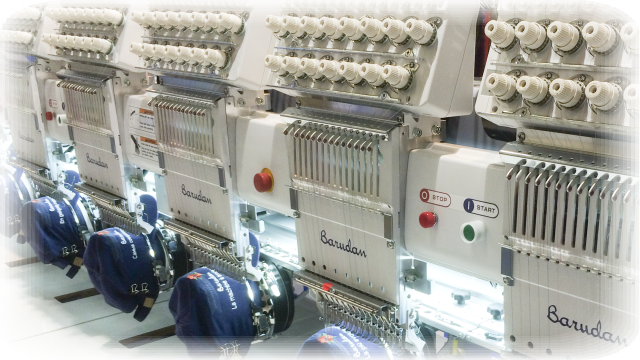

PHOTO BEKY-S1506CⅡ

Standard

KS Automat

USB Memory

Machine Specifications

BEKY-S1502CⅡ

Embroidery Area (mm)	450× 520 ⁄ 520
Number of Needles	15
Stitch Length (mm)	0.1~12.7
Speed (rpm)	(Cap Frame) 200~1000 (Tubular Frame) 200~1100
Power Supply (V)	1φ 100~240 3φ 200~415
Power Consumption (kW)	0.35

BEKY-S1504CⅡ

Embroidery Area (mm)	450× 380 ⁄ 380	450× 520 ⁄ 520
Number of Needles	15
Stitch Length (mm)	0.1~12.7
Speed (rpm)	(Cap Frame) 200~1000 (Tubular Frame) 200~1100
Power Supply (V)	1φ 100~240 3φ 200~415
Power Consumption (kW)	0.35

BEKY-S1506CⅡ

Embroidery Area (mm)	450× 380 ⁄ 380	450× 520 ⁄ 520
Number of Needles	15
Stitch Length (mm)	0.1~12.7
Speed (rpm)	(Cap Frame) 200~1000 (Tubular Frame) 200~1100
Power Supply (V)	1φ 100~240 3φ 200~415
Power Consumption (kW)	0.4

BEKY-S1508CⅡ

Embroidery Area (mm)	450× 380 ⁄ 380	450× 520 ⁄ 520
Number of Needles	15
Stitch Length (mm)	0.1~12.7
Speed (rpm)	(Cap Frame) 200~1000 (Tubular Frame) 200~1100	(Cap Frame) 200~1000 (Tubular Frame) 200~1000
Power Supply (V)	1φ 100~240 3φ 200~415
Power Consumption (kW)	0.4

Machine Main Dimensions

BEKY-S1502CⅡ

Needle Distance (mm)	Continuous Design (mm)	Dimensions (mm)
520	450× 1040	L	2045
		W	1245
		H	1690

BEKY-S1504CⅡ

Needle Distance (mm)	Continuous Design (mm)	Dimensions (mm)
380	450×1520	L	2385
		W	1245
		H	1690
520	450×2080	L	3085
		W	1245
		H	1690

BEKY-S1506CⅡ

Needle Distance (mm)	Continuous Design (mm)	Dimensions (mm)
380	450×2280	L	3145
		W	1245
		H	1690
520	450×3120	L	4125
		W	1245
		H	1690

BEKY-S1508CⅡ

Needle Distance (mm)	Continuous Design (mm)	Dimensions (mm)
380	450×3040	L	3905
		W	1245
		H	1690
520	450×4160	L	5265
		W	1245
		H	1690

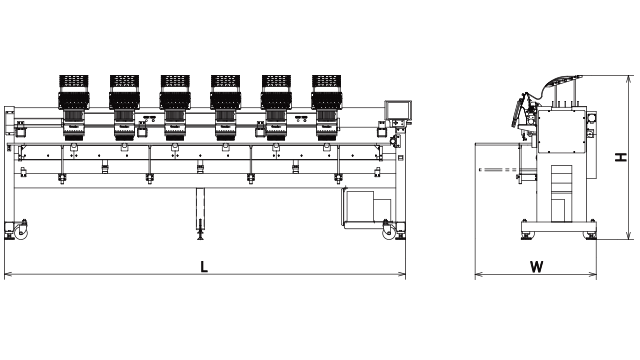

MODEL BEKY-S1506CⅡ

The embroidery area indicated above allows for maximum pantograph movement.
The frame used may restrict the actual embroidery field size.
Machine and specifications subject to change without notice.
